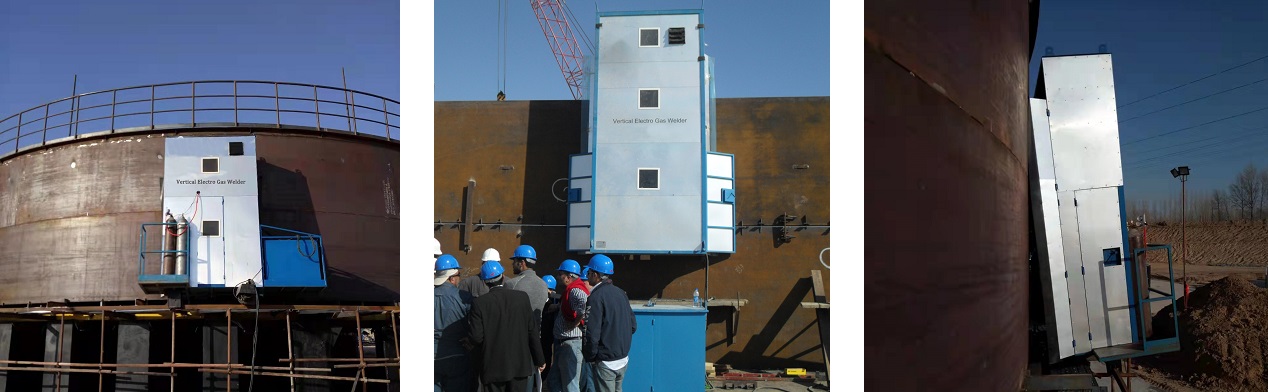

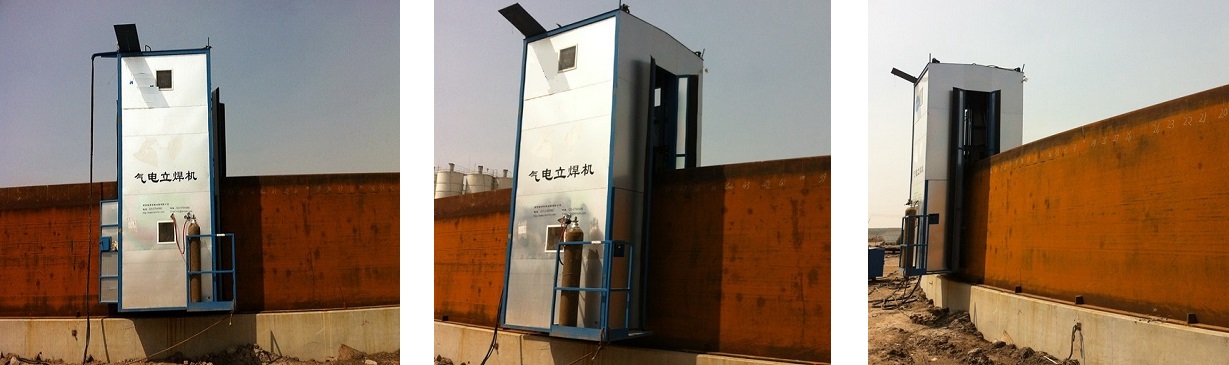

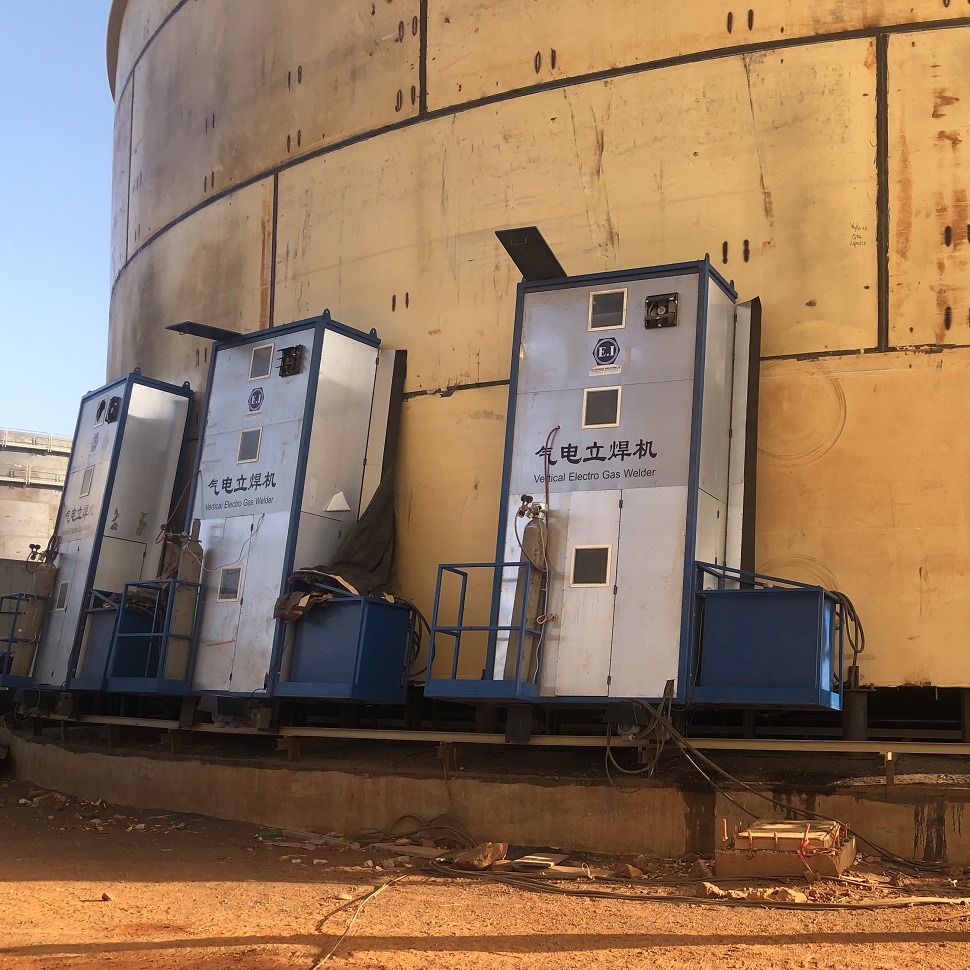

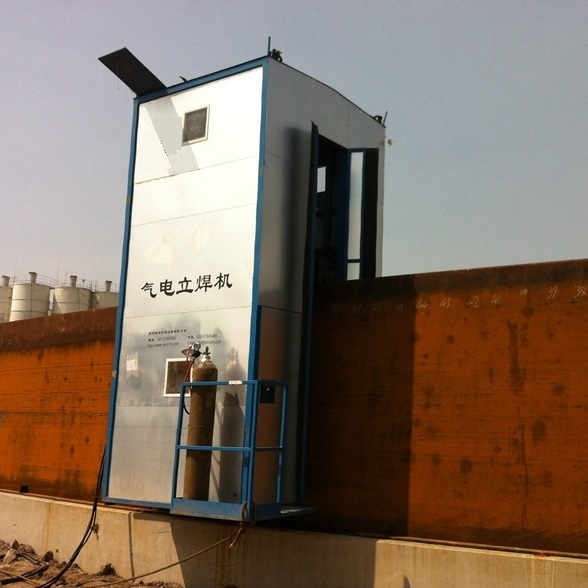

Large Oil Tank Vertical Seam Welding Machine with Operation Seat

Model	MEGW-I-Z/D
Welding Currency	80~800 A
Welding Voltage	20~45 V
Welding Speed	100~300 mm/min
Power Input	380/3PH/50Hz
Rated power	25 kw
Groove	V/X Groove
Position	Vertical seam(3G)
Full traveling speed	2650 mm/min
Full traveling speed of carriage	350 mm/min
Tank Dia	5.0 m and above
Wire Dia	Φ1.6mm
Plate Thickness	10 ~45 mm
Shell width	bottom-to-top 1.5~3.2 m
Torch adjustment	3 axis
Torch up/down adjustment	±25 mm
Torch fwd/rev adjustment	±25 mm

Get a quote

Details

Product Description

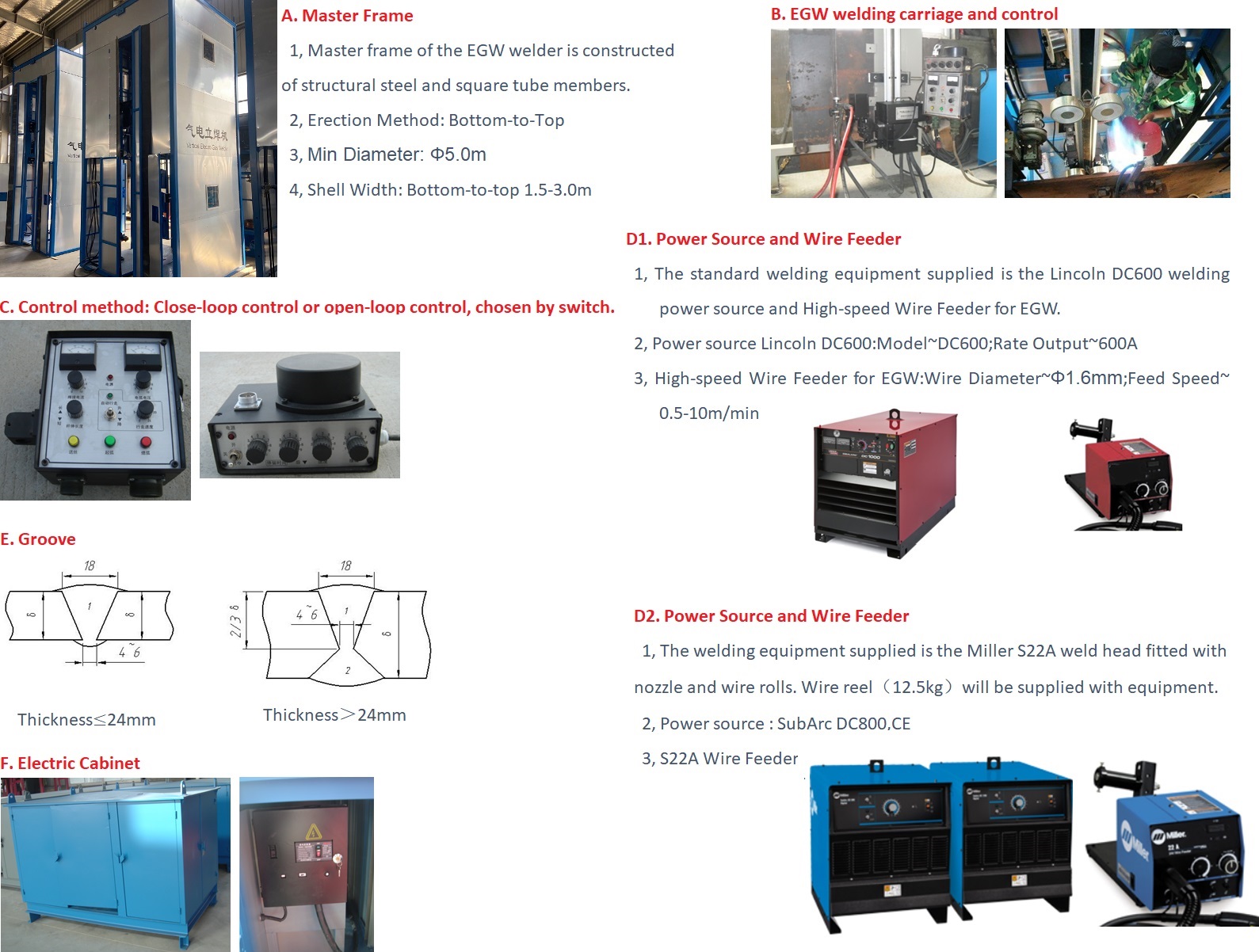

EGW vertical gas-electric welder is an efficient automatic welding equipment according to the current feedback closed-loop to control the welding carriage improve. In a single weld pass forced by water-cooled once molding thickness from 10mm to 50mm is the main characteristic of it. Molten pool liquid level automatic control at the same time, And the length of wire stretched out is automatic adjusted. With the small volume, light weight welding carriage and flexible modular easy to update, it's used convenient. Widely used in petroleum, chemical industry, the blast furnace of thick plate welding and shipbuilding and other industries.
