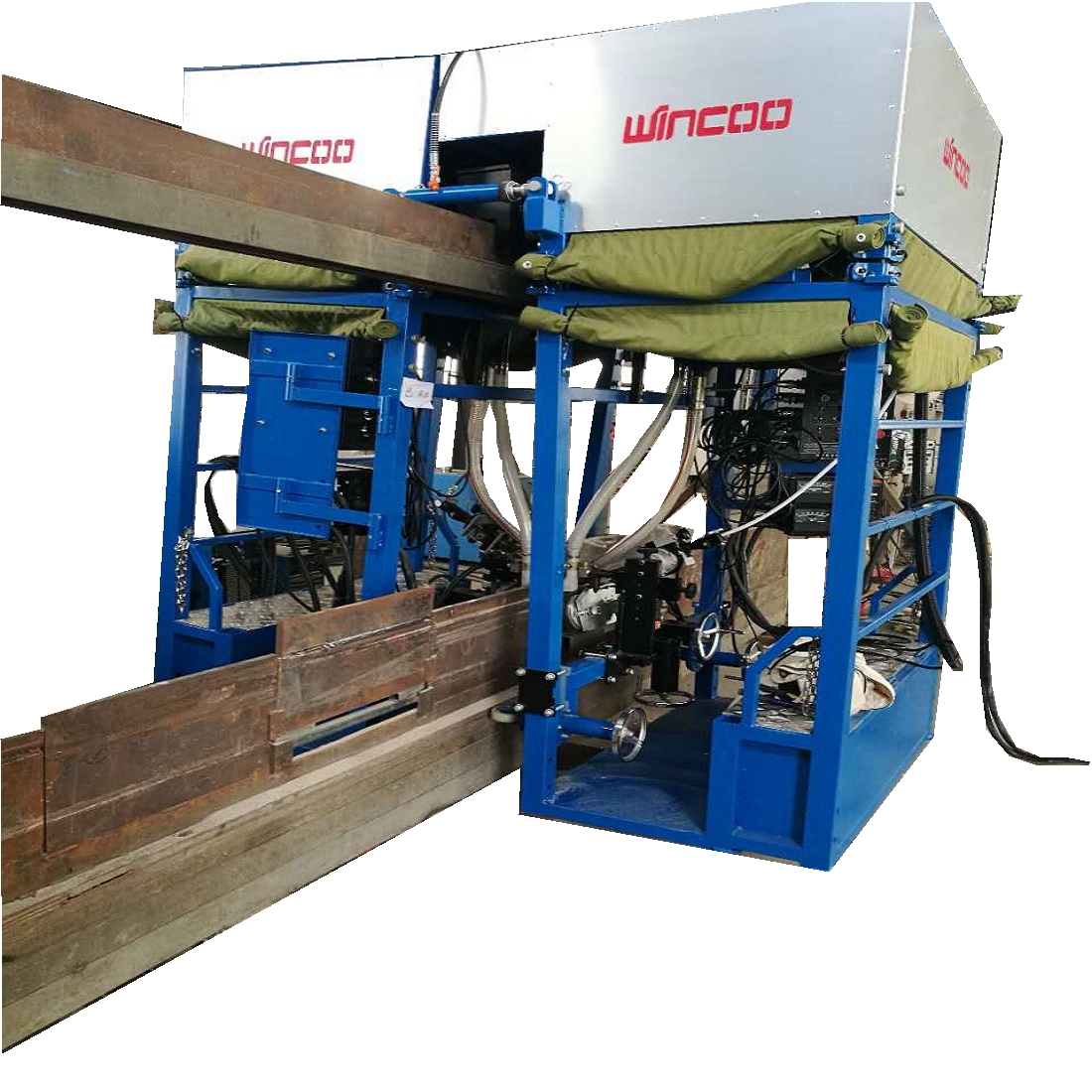

Horizontal Tank Seam Welding Machine for Oil Tank
Model | MSHW-I-Z/D |
Welding Currency | 80-800A |
Welding Voltage | 20-45V |
Welding Speed | 200-650mm/min |
Power Input | 380/3PH/50Hz |
Rated power | 25kw |
Groove | V/K Groove |
Position | Horizontal seam(2G) |
Full traveling speed | 2650mm/min |
Tank Dia | 5.0m and above |
Wire Dia | Φ2.0mm-Φ4.0mm |
Plate Thickness | 8-45mm |
Shell width | bottom-to-top 1.5-3.0m |
Torch adjustment | 3 axis |
Torch up/down adjustment | ±25mm |
Torch fwd/rev adjustment | ±25mm |
Capacity of flux container | 60kg |
Single Side Welding AGW Tank Welder
Horizontal tank welding machine is a kind of equipment specially used for welding large storage tank, which can realize automatic transverse welding of storage tank. Large storage tank automatic horizontal welding machine can improve welding efficiency, reduce manual operation, reduce labor intensity, guarantee welding quality, is one of the important equipment of modern storage tank production.
Major component
The main components of tank automatic horizontal welding machine include welding robot, welding source, control system, transmission system and welding fixture.
1, Welding robot is the core component of automatic horizontal welding machine. It can weld automatically according to welding path to improve welding efficiency and quality.
2, Welding source is the equipment that provides welding energy. Different welding sources can be selected according to different welding requirements.
3, The control system is the brain of large storage tank automatic horizontal welding machine, which can realize welding path planning and control to ensure welding accuracy and stability.
4, Transmission system is the power source of welding robot, which can realize the movement and positioning of welding robot.
5, Welding fixture is the auxiliary equipment of automatic horizontal welding machine for large storage tank, which can realize welding clamping and positioning.
Product Features
The characteristics of automatic horizontal welding machine are high efficiency, stability, precision and reliability. Automatic horizontal welding machine for large storage tank can weld automatically to improve welding efficiency and quality.
1, Automatic horizontal welding machine for large storage tank can realize welding path planning and control to ensure welding accuracy and stability.
2, Large storage tank automatic horizontal welding machine can realize welding clamping and positioning, to ensure the accuracy of welding position and Angle.
3, Large storage tank automatic horizontal welding machine can choose different welding sources according to different welding requirements to ensure welding quality and stability.

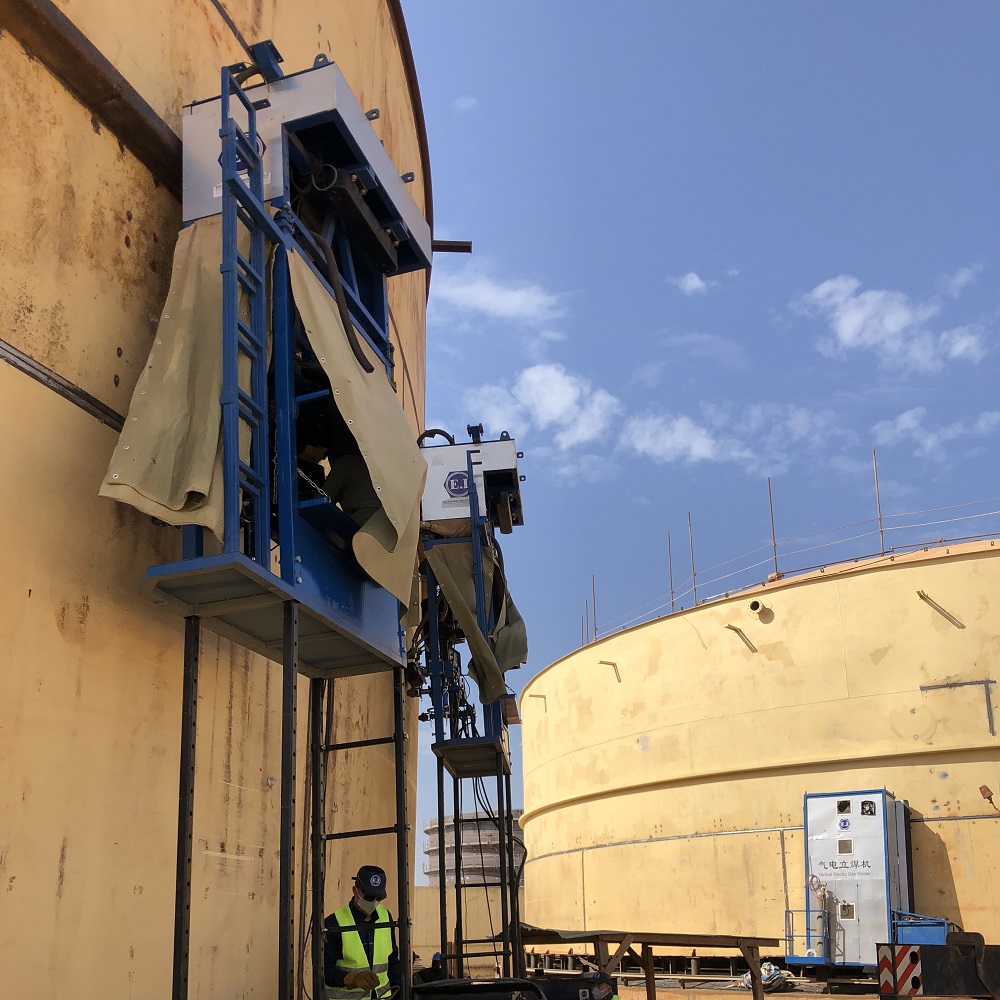

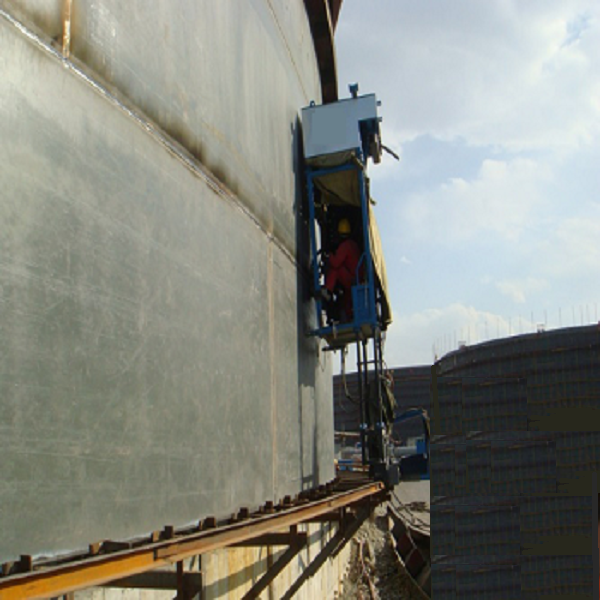

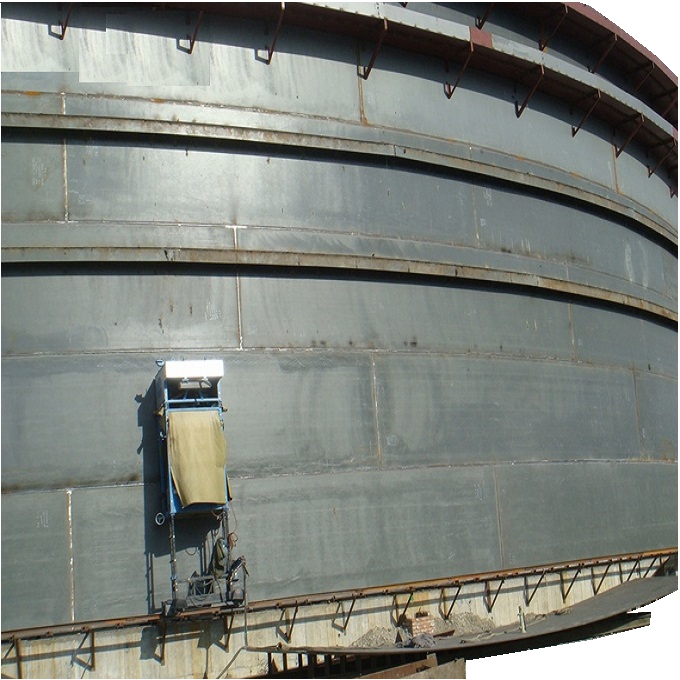

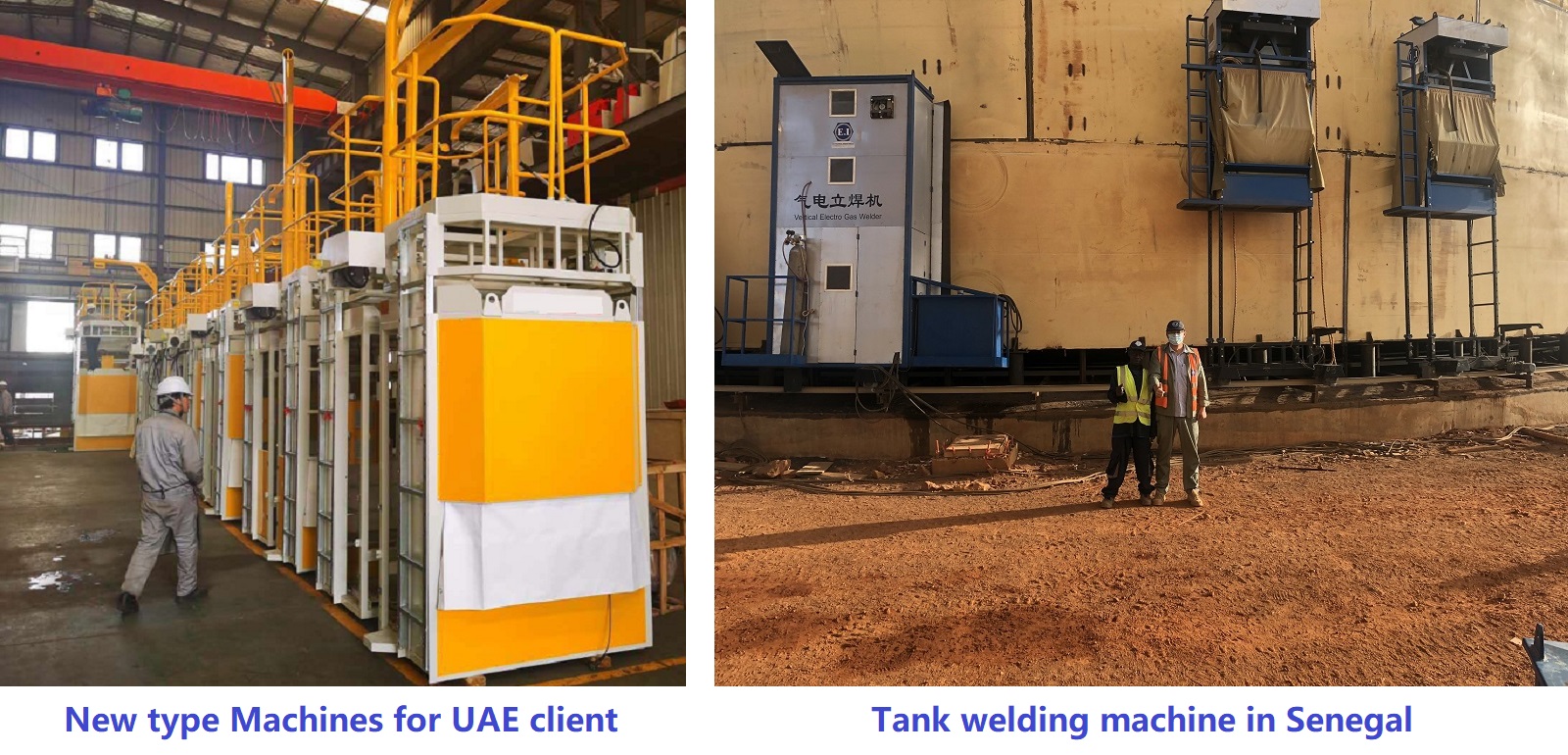

Construction site photos
